Hawke FRONTIER 30 FFP 3-15X50

Hawke FRONTIER 30 FFP 3-15X50

FFP Mil Pro (15x) Reticle

The FFP Mil Pro reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With half Mil spaced markings extending out to 10 Mil of holdover, the FFP Mil Pro is a versatile reticle that provides aim points no matter how extreme the distance.

All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.

Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.

Optical System
System H7
Scope Tube
30mm
Magnification
3 – 15x
Objective Lens
50mm
Reticle
FFP Mil Pro (15x)
Illumination
6 Levels with Off Positions In-between – Red
Parallax
Side Focus
Focal Plane
FFP (First Focal Plane)
Lens Coating
Fully Multi-Coated – 21 Layers
Field of View
37.5 – 7.5ft @100yds
12.5 – 2.5m @100m
Field of View
7.1 – 1.4°
Eye Relief
4in
102mm
PX/Focus (Error free from)
10yds – ∞
9m – ∞
Exit Pupil
0.66 – 0.13″
16.7 – 3.3mm
Turret Type
Zero Lock ‘n’ Stop
Turret Caps
N/A
Click Value
110MRAD
Elevation Turret Clicks (max)
26 MRAD
Windage Turret Clicks (max)
26 MRAD
Ocular Type
Locking Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Length
13.2″
336mm
Weight
22.2oz
630g
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth

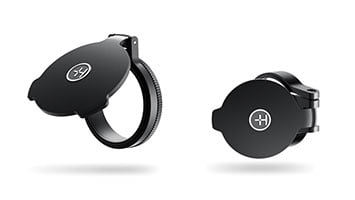

  • Pro Flip-Up Covers
  • 4″ Sun Shade

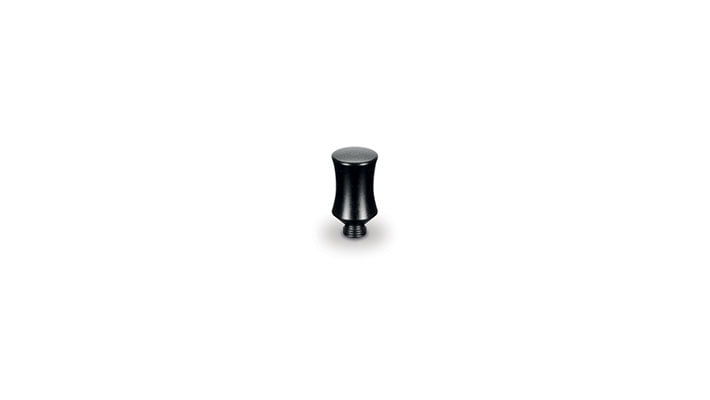

  • Zoom Lever
  • CR2032 Battery
